It is to be noted that the elements portrait on the diagram doesnot represent actual physical size of the electrical component.Ĥ. The electrical elements like transformer, capacitor, circuit breaker, bus bars are represented by the standard schematic symbols.ģ. As we know that the single line diagram is a simplified way for representing a 3 phase power system, so in case of representing each of the 3 phases with a separate terminal only one conductor is used to represent it.Ģ. The single line diagram can be termed as building an electrical system.ġ.
+diagram.jpg "single line diagrams")
The information from one line diagram can be widely used to enhance the performance of service activities.Ĥ. If in any case the inaccuracy in the connection and the failure arises the updation of the single diagram becomes easy even on the regular basis.ģ. Identification of the problem location, in safety conformity and the staff safety can be benefited by the use of single line diagram.Ģ. The single diagram provides an easy and understanding of the connection and the component.ġ. In other words we can say that the proper relationship between the circuit and the component are provided but the actual location of the component not needed. The entire logic of an electrical circuit or one can say it as a system using standard symbols are properly specified diagram.
These diagrams are specifically use when the information about the circuit is required but the details of the actual wire connection and the operation of the circuit are not needed.

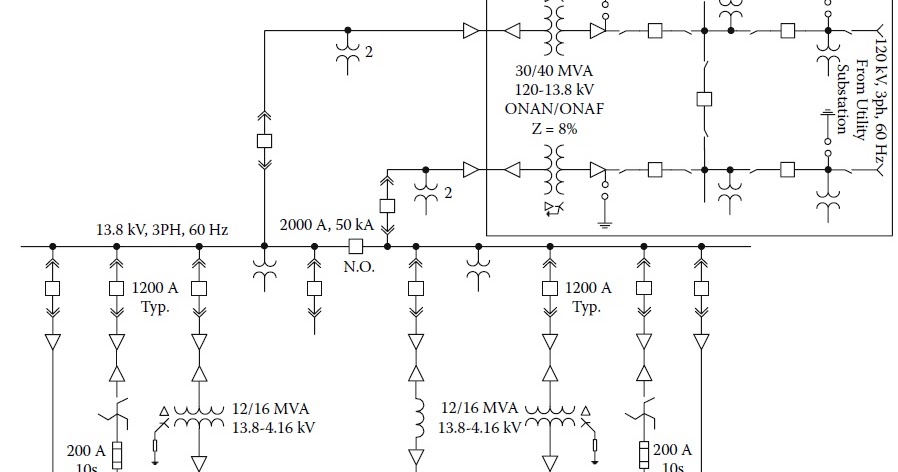

As per the definition of the single line diagram, it is specified as the diagram that uses single line and symbols to represent the path and the components of an electrical circuit.
